Precision CNC Machining Solution for High-Complexity Multi-Cavity Semiconductor Vacuum Shell Production

2024-11-21

Project Brief


Industry

The semiconductor industry

Product

Multi-cavity vacuum shells

Challenges

The components had to meet stringent dimensional tolerances while being produced in high volumes.

Technology

Advanced CNC Machining,Electrical Discharge Machining

Material

Titanium alloy

Surface finish

Polished smooth, Nickel plating

Quantity

25Sets

Lead Time

14 Business days


Customer Overview and Project Need

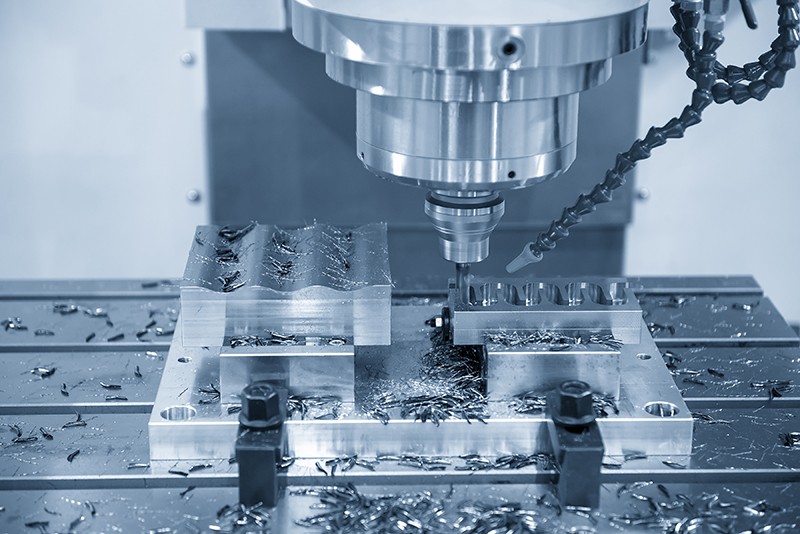

Precision CNC Machining Solution

The customer, a leading semiconductor manufacturer based in Europe, specializes in producing high-precision components for the semiconductor industry. Their production line faced increasing demand for multi-cavity vacuum shells, which are critical components in semiconductor fabrication equipment. The challenge was twofold: the components had to meet stringent dimensional tolerances while being produced in high volumes. Additionally, the customer needed to optimize their production costs without sacrificing quality.

As the semiconductor industry evolves, it faces several technical challenges, including the need for higher precision and faster production cycles, alongside materials that can withstand extreme operating conditions. The client's project required a solution that could not only meet these high standards but also be scalable for mass production.


Project Description and Technical Challenges


The customer's primary challenges included:

  • Precision Requirements: The multi-cavity vacuum shells needed to be manufactured with an extremely tight tolerance, requiring precision machining techniques.

  • Material Complexity: The parts were to be made from high-performance materials, which required specialized tools and machining strategies.

  • Complex Geometry: The multi-cavity design introduced complexities in machining due to the need for precise alignment and internal features.

  • Volume and Time Constraints: The project also demanded rapid production to meet growing market demands, without compromising quality or increasing costs.

The project's objective was to manufacture these vacuum shells with high precision and within an expedited timeline, while ensuring that the parts could be scaled up for large-scale production.


Solution and Implementation Process


To meet the customer's high standards, Xiamen Prime KunWu Technology Co., Ltd. implemented the following solutions:

  • Advanced CNC Machining: The project was tackled using state-of-the-art CNC machining technology, which ensured the parts were manufactured with high accuracy. We utilized 5-axis CNC machines, which provided flexibility and precision, especially for complex geometries.

  • Wire-cut EDM (Electrical Discharge Machining): To achieve the intricate internal cavities and sharp edges, Wire-cut EDM was employed. This method ensured high precision in delicate areas, which were critical to the overall design integrity.

  • Material Selection: The customer’s vacuum shells required a material that could withstand both high temperatures and mechanical stress. We selected titanium alloy due to its excellent thermal stability and strength-to-weight ratio. This material choice ensured that the final product could perform reliably in the harsh conditions of semiconductor fabrication environments.

  • Quality Control and Testing: Stringent quality control procedures were applied at every stage of production. After machining, each component underwent CMM (Coordinate Measuring Machine) inspection to verify dimensional accuracy, ensuring that every part met the customer’s tight tolerances.

  • Optimization for Mass Production: Given the customer’s need for high-volume production, we optimized the manufacturing process by fine-tuning machining parameters to maximize efficiency without sacrificing quality. This included adjusting feed rates, tool paths, and using advanced cutting fluids to extend tool life.


Results and Achievements


The project successfully met the customer’s demanding requirements. Key outcomes include:

  • Production Time Reduction: The implementation of CNC machining and Wire-cut EDM helped reduce the overall production time by 30%, allowing the customer to meet tight delivery deadlines.

  • Enhanced Precision: The use of high-precision machining methods resulted in components being produced within 0.01mm tolerance, surpassing the initial specifications.

  • Cost Optimization: By optimizing the production process and materials, we were able to reduce manufacturing costs by 15% without compromising quality.


Customer Feedback


steel manufacturing companies

The customer, SEM Corp., a leading semiconductor equipment manufacturer, expressed high satisfaction with the results. According to John Smith, Senior Project Manager at SEM Corp.,

"Xiamen Prime Kunwu Industrial Co., Ltd.’s expertise in CNC machining and Wire-cut EDM helped us overcome the challenges of producing high-precision vacuum shells. Their innovative solutions not only met our technical requirements but also allowed us to achieve cost savings and reduce production times. We look forward to future collaborations with them."


Conclusion and Call to Action


This project showcases Xiamen Prime Kunwu Industrial Co., Ltd.'s commitment to delivering high-quality, precise machining solutions, even under the most challenging conditions. Our ability to solve complex technical problems and optimize production processes demonstrates our leadership in the field of CNC machining and precision manufacturing.

If you are facing similar challenges in your production, contact us today to learn how we can help you develop precision solutions tailored to your needs. We look forward to working with you on your next project.
